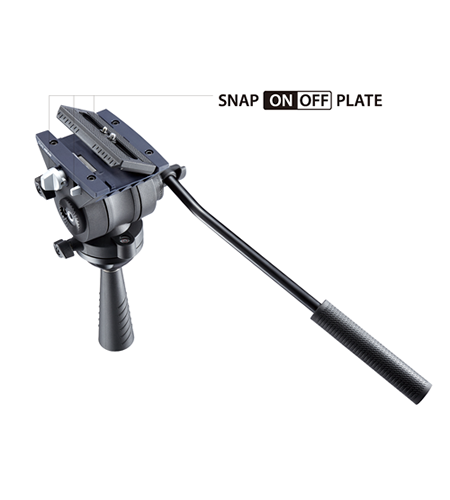

The camera plate is attachable and detachable with just one touch, promoting speedy and easy setup. |
|---|---|
 |
Dual-head specification available for both 65mm bowl and flat base tripods. Mountable on sliders, skater dollies, and other equipment. |
 |
By removing the spacer from the bowl clamp, the length of the insertion thread is extended, offering more equipment options that can be attached to the head. |
| Operation manual | |
|---|---|
| TH-X | |
| Specification sheet | |
| TH-X H | |
| Service parts | |
| TH-X H | |
| Specifications | |
|---|---|
| Payload | 4kg / 9lb (C.G.55mm) |
| Counterbalance | FIX |
| Drag mode | FIX |
| Tilt angle | +90° / -80° |
| Temperature range | -20°C to +60°C / -4°F to +140°F |
| Bubble level | Non illuminated |
| Camera plate | Sliding plate |
| Compatible with Manfrotto and Sachtler heads | |
| Sliding range | +/-30mm / 1.2" |
| Head base | 65mm ball / Flat base |
| Plate attachment | 1/4" screw with video pin |
| Spare screw | None |
| Weight | 1kg / 2.2lb |
| TH-X H Counterbalance chart |
|---|
 |
