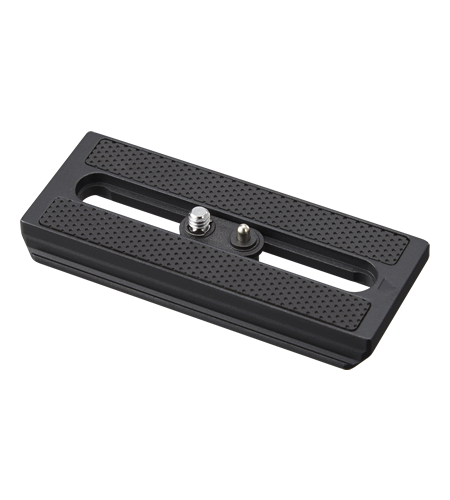

Sliding plate, Pan and tilt locks

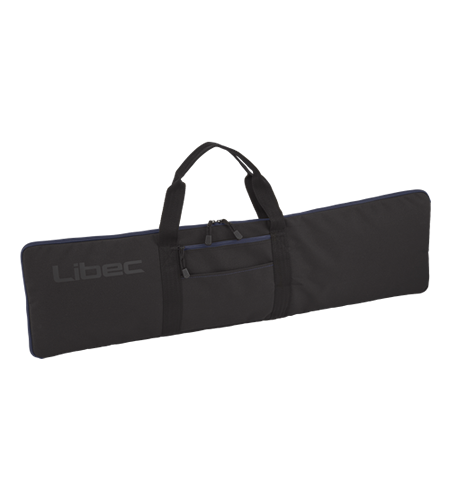

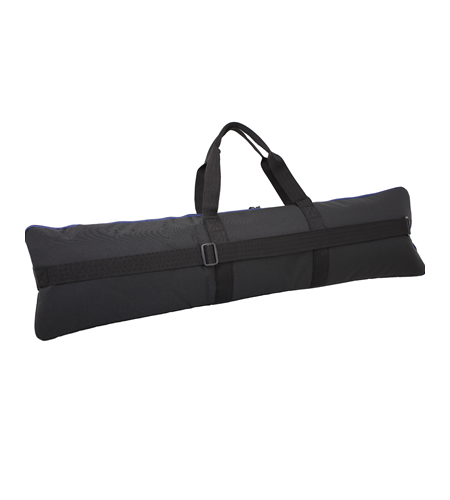

Tripod case
Bowl clamp included
Bowl clamp included
Dual-head specification
Dual-head specification
Compatible with Manfrotto and Sachtler heads

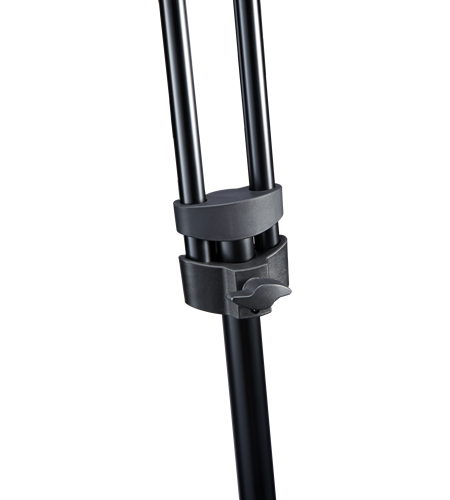

Locks knob
Related Items
Sliding plate, Pan and tilt locks
Tripod case
Bowl clamp included
Bowl clamp included
Dual-head specification
Dual-head specification
Compatible with Manfrotto and Sachtler heads
Locks knob
| Operation manual | |
|---|---|
| TH-X | |
| Specification sheet | |
| TH-X | |
| Service parts | |
| TH-X H | TH-X T |
| Specifications | |
|---|---|
| Payload | 4kg / 9lb (C.G.55mm) |
| Counterbalance | FIX |
| Drag mode | FIX |
| Tilt angle | +90° / -80° |
| Temperature range | -20°C to +60°C / -4°F to +140°F |
| Bubble level | Non illuminated |
| Camera plate | Sliding plate |
| Compatible with Manfrotto and Sachtler heads | |
| Sliding range | +/-30mm / 1.2" |
| Head base | 65mm ball / Flat base |
| Plate attachment | 1/4" screw with video pin |
| Spare screw | None |
| Weight | 3.1kg / 6.9lb |
| Height | 75.5cm to 159cm / 29.7 to 62.6" |
| Head attachment | 65mm bowl |
| Section | 2-Stage |

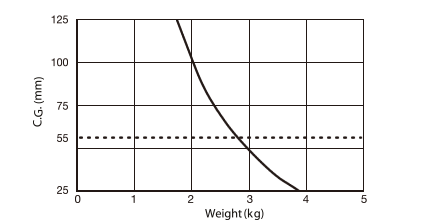

| TH-X Counterbalance chart |
|---|
 |
