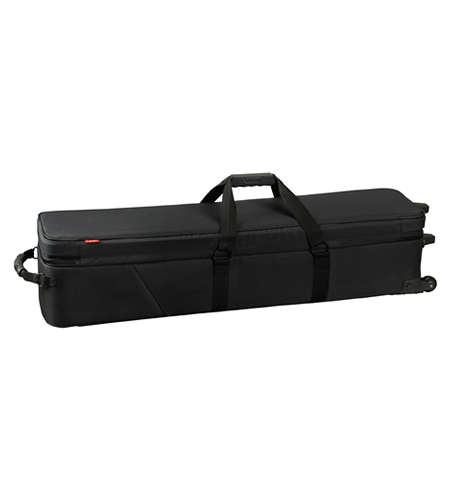

All-round tripod case RC-80
Counterbalance knob
LED bubble level
Pan and tilt drag control
1/4" and 3/8" spare screws
Upper lock knob

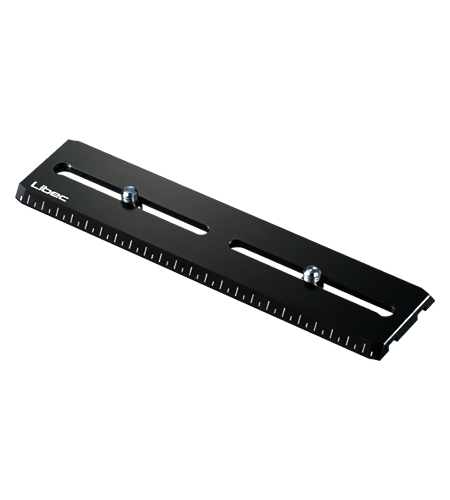

Long sliding plate
Related Items
All-round tripod case RC-80
Counterbalance knob
LED bubble level
Pan and tilt drag control
1/4" and 3/8" spare screws
Upper lock knob
Long sliding plate
 |
Libec's unique continuous perfect counterbalance system enables the camera to perfectly balance at any tilt angle. |
|---|---|
 |
The camera plate is attachable and detachable with just one touch, promoting speedy and easy setup. |
| System components | |
|---|---|
| Head: RHP85 | Tripod: T103RB |
| Long sliding plate | Spreader: SP-6B |
| Case: RC-80 | |
| Operation manual | |
|---|---|
| RHP85 | T103RB |
| SP-6B | |
| Specification sheet | |

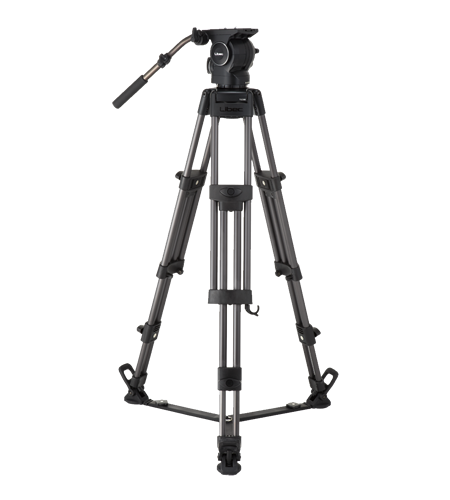

| RSP-850 | RHP85 |
| Long Plate L | T103RB |
| SP-6B | RC-80 |
| Service parts | |
| RHP85 | T103RB |
| SP-6B | |
| Specifications | |
|---|---|
| Counterbalance range | 9 to 20kg / 20 to 44lb (C.G.125mm) |
| Payload | 25kg / 55lb |
| Counterbalance | Perfect Balance |
| Continuous Counterbalance | |
| Drag mode | 7steps |
| Tilt angle | +90° / -70° |
| Temperature range | -40°C to +60°C / -40°F to +140°F |
| Bubble level | Illuminated |
| Camera plate | Sliding plate |
| Sliding range | +/-55mm / 2.2" |
| Long sliding plate | Included |
| Head base | 100mm ball |
| Plate attachment | 3/8" screw × 2 |
| Spare screw | 3/8" screw |
| Weight | 12.5kg / 27.5lb |
| Height | 82 to 193cm / 32 to 76" |
| Head attachment | 100mm bowl |
| Section | 2-Stage |
