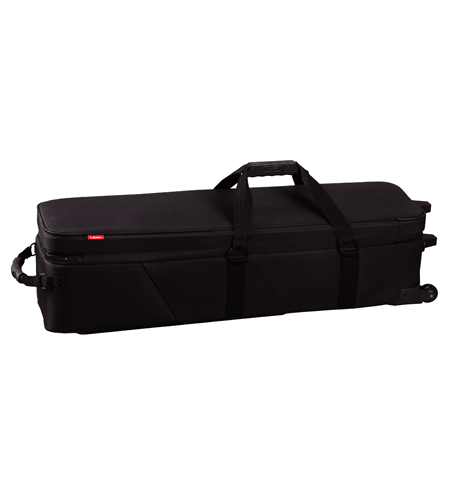

All-round tripod case RC-70

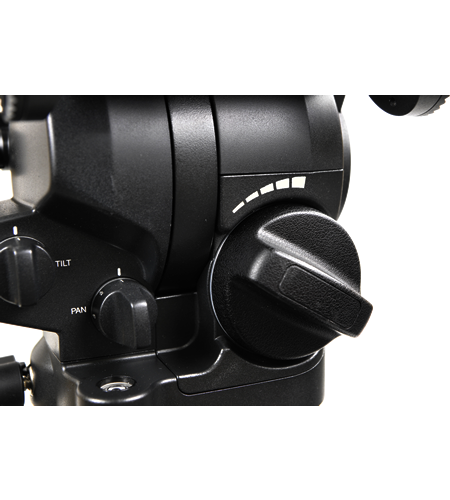

Counterbalance knob

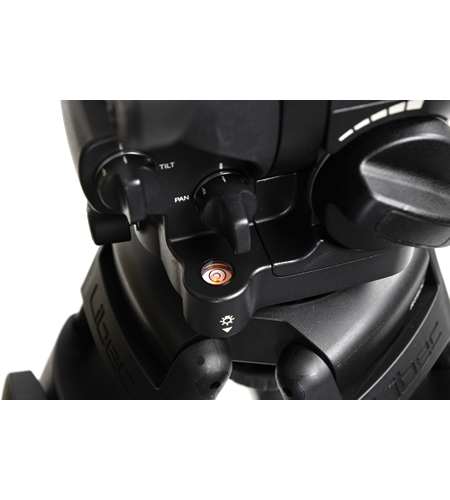

LED bubble level

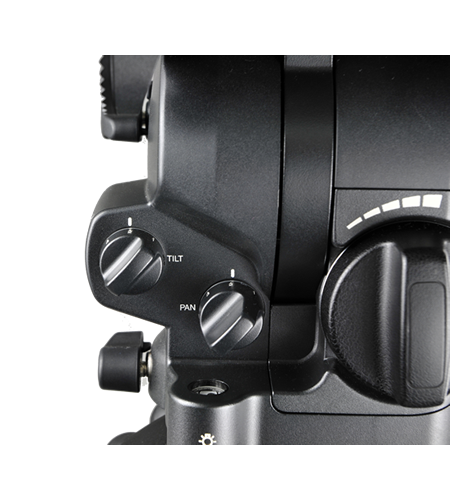

Pan and tilt drag control

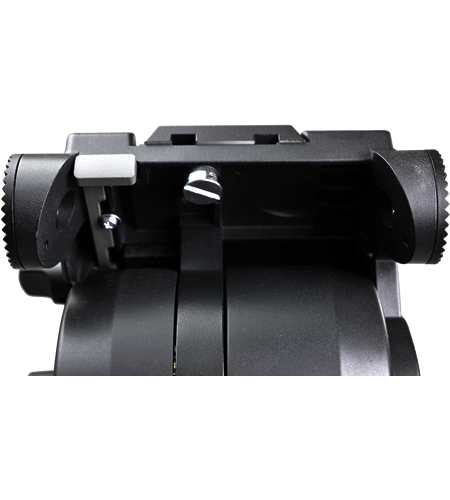

1/4" and 3/8" spare screws
Upper lock knob

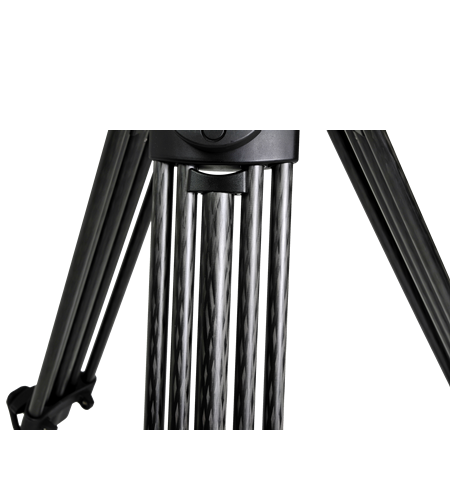

Carbon pipe
Related Items
All-round tripod case RC-70
Counterbalance knob
LED bubble level
Pan and tilt drag control
1/4" and 3/8" spare screws
Upper lock knob
Carbon pipe
| System components | |
|---|---|

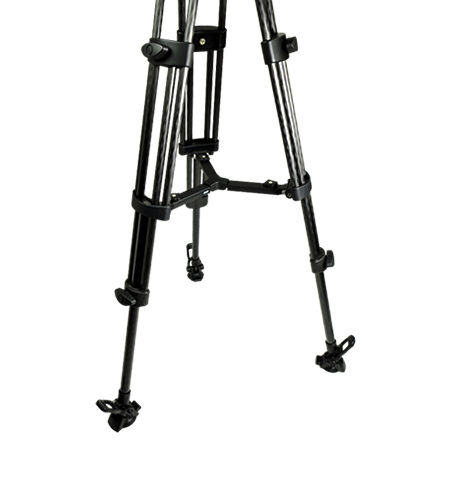

| Head: RHP75 | Tripod: RT50C |
| Spreader: BR-6B | Large rubber feet: FP-2B |
| Case: RC-70 | |
| Operation manual | |
|---|---|
| RHP75 | RT50C |
| BR-6B | FP-2B |
| Specification sheet | |

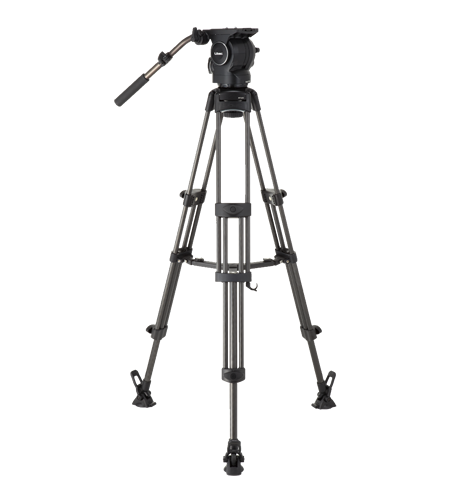

| RSP-750MC | RHP75 |
| RT50C | BR-6B |
| FP-2B | RC-70 |
| Service parts | |
| RHP75 | RT50C |
| BR-6B | FP-2B |
| Specifications | |
|---|---|
| Counterbalance range | 5.5 to 14kg / 12 to 31lb (C.G.125mm) |
| Payload | 17kg / 37.5lb |
| Counterbalance | Perfect Balance |
| Continuous Counterbalance | |
| Drag mode | 7 steps |
| Tilt angle | +90° / -70° |
| Temperature range | -40°C to +60°C / -40°F to +140°F |
| Bubble level | Illuminated |
| Camera plate | Sliding plate |
| Sliding range | +/-55mm / 2.2" |
| Long sliding plate | Optional |
| Head base | 100mm ball |
| Plate attachment | 3/8" screw × 2 |
| Spare screw | 3/8" screw |
| Weight | 7.5kg / 16.5lb |
| Height | 85 to 173.5cm / 33.5 to 68.5 |
| Head attachment | 100mm bowl |
| Section | 2-Stage |
