Steering handle
Middle column lock knob
PH-8B dual pan handle
Related Items
Steering handle
Middle column lock knob
PH-8B dual pan handle
| Operation manual | |
|---|---|
| Specification sheet | |

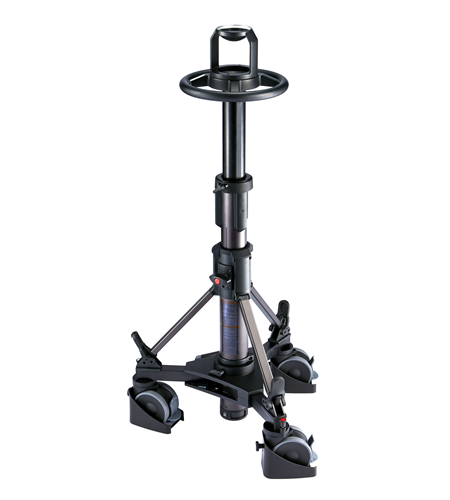

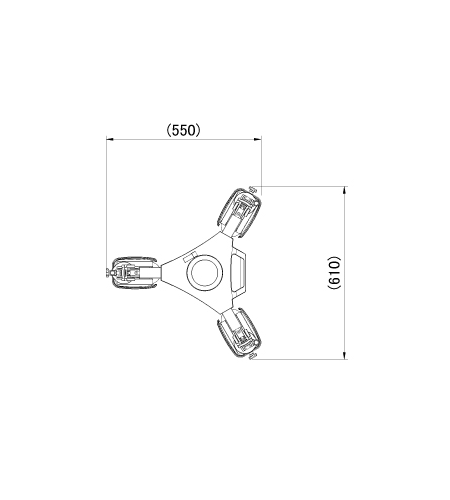

| P110S Compact | DL-10RB Compact |
| Service parts | |
| P110 Column | DL-10RB Compact |
| Specifications | |
|---|---|
| Payload | 30kg / 66lb (Including head) |
| Column elevation mechanism | Upper Column : Supported by air pressure |
| Column | 2-Stage |
| Upper Stroke | 38cm / 15" |
| Lower Stroke | 37cm / 14.6" |
| Stroke range | 75cm / 29.5" |
| Head attachment | 100mm bowl |
| Pressure Adjustment | Air pressure (A air pump equipped) |
| Height | 81 to 156cm / 32.0 to 61.5" |
| Weight | 17kg / 37.5lb |
| Radius | 415mm / 16.3" |
| Max Tracking Width | 691mm / 27.2" |
The P110S is equipped with the tracking locking mechanism and cable guards which come standard with the large-sized double-wheel 125mm / 4.9" casters. The tracking locking mechanism ensures straight-line movement by locking the caster direction, while the cable guards prevent the wheels from running over the cable during studio production.
