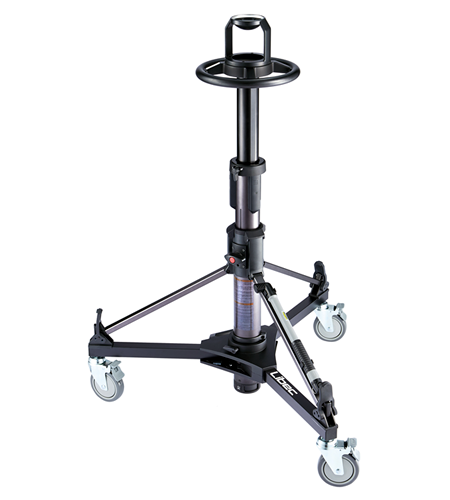

Outside Broadcast Version
Payload 30kg / 66.0lb

  • Steering handle

  • Middle column lock knob

  • Air pump

  • PH-8B dual pan handle

Operation manual
P110B
Specification sheet
P110B
Service parts
P110 Column DL-8RB
Specifications
Payload 30kg / 66lb (Including head)
Column elevation mechanism Upper Column : Supported by air pressure
Column 2-Stage
Upper Stroke 38cm / 15"
Lower Stroke 37cm / 14.6"
Stroke range 75cm / 29.5"
Head attachment 100mm bowl
Pressure adjustment Air pressure (A air pump equipped)
Height 82.5 to 157.5cm / 32.5 to 62"
Weight 16.8kg / 37lb

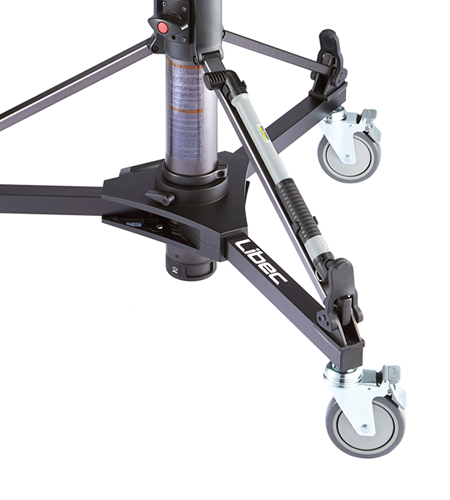

Large sized Ø125mm/4.9" casters provide quick smooth movement.
The double stopper mechanism enables a one-touch locking of the wheel.
