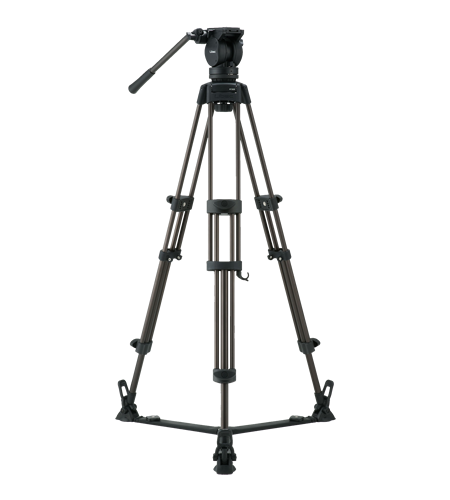

| System components | |
|---|---|
| Head: LX7 Head | Tripod: RT30B |
| Spreader: SP-2B | Case: RC-20 |
| Operation manual | |
|---|---|

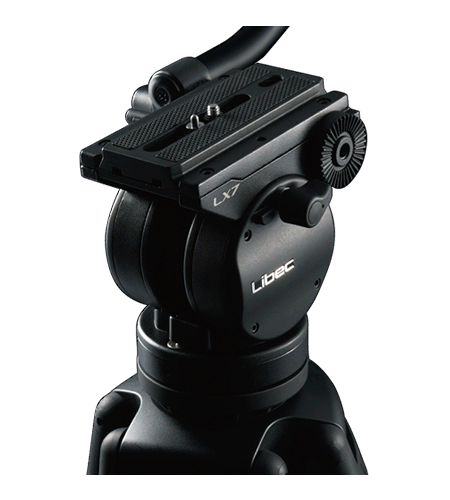

| LX7 Head | RT30B |
| SP-2B | |
| Specification sheet | |
| LX7 | LX7 Head |
| RT30B | SP-2B |
| Service parts | |
| LX7 Head | RT30B |
| SP-2B | |
| Specifications | |
|---|---|
| Payload | 8kg / 17.5lb |
| Counterbalance | FIX |
| Drag mode | FIX |
| Tilt angle | +90° / -80° |
| Temperature range | -20°C to +60°C / -4°F to +140°F |
| Bubble level | Non illuminated |
| Camera plate | Sliding plate |
| Sliding range | +/-40mm / 1.6" |
| Head base | 75mm Schüssel ball |
| Plate attachment | 1/4" screw with video pin |
| Spare screw | 3/8" screw |
| Weight | 5.5kg / 12.1lb |
| Height | 56 to 166cm / 22 to 65.5" |
| Head attachment | 75mm bowl |
| Section | 2-Stage |

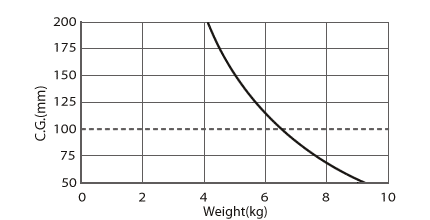

| LX7 Counterbalance chart |
|---|
 |
