RC-30
Related Items
RC-30
 |

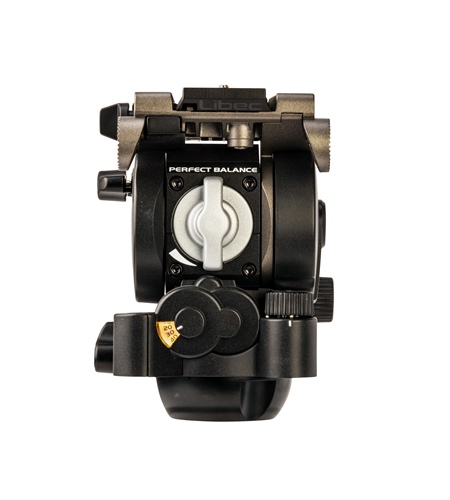

Libec's unique continuous perfect counterbalance system enables the camera to perfectly balance at any tilt angle. |
|---|---|
 |
The camera plate is attachable and detachable with just one touch, promoting speedy and easy setup. |
 |
Dual-head specification available for both 75mm bowl and flat base tripods. Mountable on sliders, skater dollies, and other equipment. |
 |
By removing the spacer from the bowl clamp, the length of the insertion thread is extended, offering more equipment options that can be attached to the head. |
 |
| System components | |
|---|---|
| Head: H25 | Tripod: RT30B |
| Spreader: SP-2B | Case: RC-30 |
| Operation manual | |
|---|---|
| H25 | RT30B |
| SP-2B | |
| Specification sheet | |
| HS-250 | H25 |
| RT30B | SP-2B |
| RC-30 | |
| Service parts | |
| H25 | RT30B |
| SP-2B | |
| Specifications | |
|---|---|
| Counterbalance range | 1.7 to 4.5kg / 3.7 to 9.9lb (C.G.100mm) |
| Payload | 5kg / 11lb |
| Counterbalance | Perfect Balance |
| Continuous Counterbalance with Illuminated Meter | |
| Drag mode | Free plus 3 steps |
| Drag system | Multilayered Metal Structure |
| Tilt angle | +90° / -70° |
| Temperature range | -40°C to +60°C / -40°F to +140°F |
| Bubble level | Illuminated |
| Camera plate | Sliding plate compatible |
| with Manfrotto and Sachtler heads | |
| Sliding range | +/-30mm / 1.2" |
| Long sliding plate | Optional |
| Head base | 75mm ball / Flat base |
| Plate attachment | 1/4" screw with video pin |
| Accessory attachments | 1/4" and 3/8" screw holes |
| Spare screw | 1/4" and 3/8" screws |
| Weight | 6.3kg / 13.9lb |
| Height | 56 to 166cm / 22 to 65.4" |
| Head attachment | 75mm bowl |
| Pipe material | Aluminium |
| Section | 2-Stage |

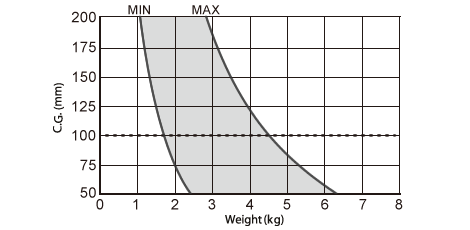

| H25 Counterbalance chart |
|---|
 *When the innerspring is set to maximum strength, the tilt angle is limited to +/-50 degrees. |
