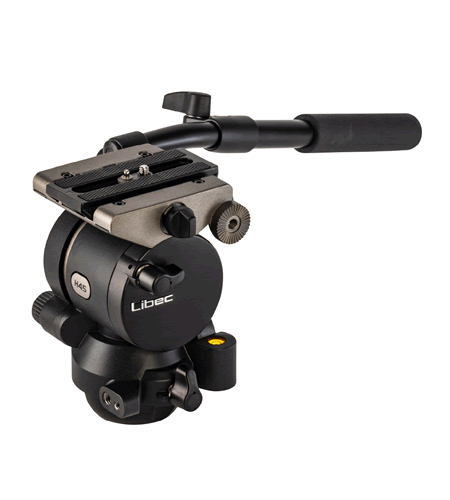

| H45 | Long Plate S |
| Service parts | |
| H45 | |
| Specifications | |
|---|---|
| Counterbalance range | 4.5 to 10.5kg / 9.9 to 23.1lb (C.G.100mm) |
| Payload | 12kg / 26.5lb |
| Counterbalance | Perfect Balance |
| Continuous Counterbalance with Illuminated Meter | |
| Drag mode | Free plus 3 steps |
| Drag system | Multilayered Metal Structure |
| Tilt angle | +90° / -70° |
| Temperature range | -40°C to +60°C / -40°F to +140°F |
| Bubble level | Illuminated |
| Camera plate | Sliding plate compatible |
| with Manfrotto and Sachtler heads | |
| Sliding range | +/-30mm / 1.2" |
| Long sliding plate | Included |
| Head base | 75mm ball / Flat base |
| Plate attachment | 1/4" screw with video pin |
| Accessory attachments | 1/4" and 3/8" screw holes |
| Spare screw | 1/4" and 3/8" screws |
| Weight | 2.8kg / 6.2lb |
| H45 Counterbalance chart |
|---|
 *When the innerspring is set to maximum strength, the tilt angle is limited to +/-40 degrees. |
