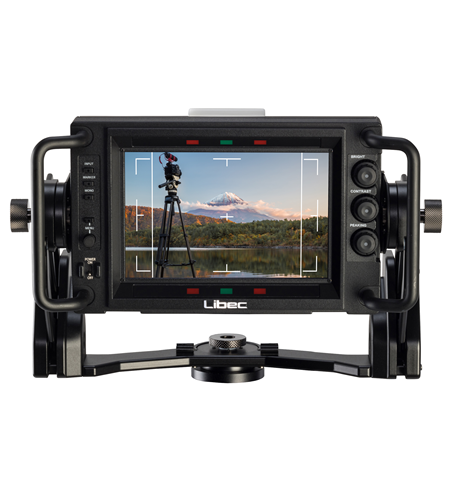

Full HD 7" Viewfinder for studio cameras

Operation manual
SVF-7Pro
Specification sheet
SVF-7Pro
Service parts
SVF-7Pro
Specifications
Panel 7-inch color TFT transmissive LCD
Picture resolution 1920 x 1080
Brightness 350cd/m²
Viewing angle 170°(H) / 170°(V)
Color reproduction 16.7M colors
Display area 151(H) x 85(V)mm / 5.94(H) x 3.35(V)"

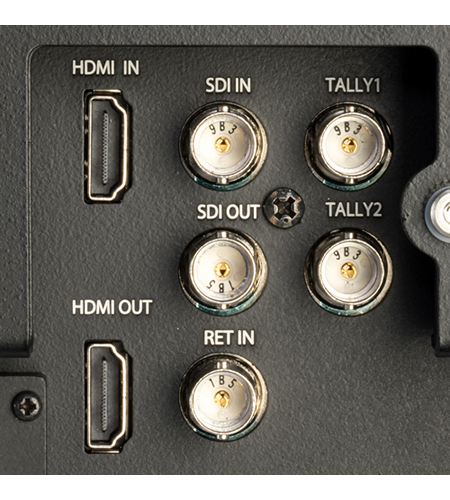

SDI input BNC x 1
SDI output BNC x 1
SDI return input BNC x 1
HDMI input HDMI x 1
HDMI output HDMI x 1
CAMERA input 20-pin x 1, Analog HD component (Y / PB / PR or G / B / R)
TALLY in TALLY1: BNC x 1, Green (2V- 4V) / Red (4.1V- 5V) / OFF (0V- 2V)
TALLY2: BNC x 1, Red (ON / Short to GND) / OFF (Open)
TALLY indicator Front tally x 2 sets, Green / Red Brightness adjustable in MENU
Rear tally x 1, Red Brightness adjustable in MENU
Weight 1.2kg / 2.65lb (without accessories)
Size 232 x 146 x 47mm / 9.13 x 5.75 x 1.85" (excluding protrusions)
Power consumption 12W
Operating temperature 0°C to +40°C / +32°F to +104°F
Operating humidity 30% to 85%
Storage temperature -10°C to +45°C / +14°F to +113°F
Storage humidity 0% to 90%
Video input signal 1080p (59.94 / 50 / 29.97 / 25 / 24 / 23.98)
1080i (59.94 / 50)
1080PsF (29.97 / 25 / 24 / 23.98)
720p (59.94 / 50)
*Connection cable and shoe attachment for cameras not included, please be sure to purchase either the CA-7S, the CA-7I, or the CA-7H.
**Input signals that are not list in "Video input signals" may not be supported.
List of cameras tested with SVF-7Pro
