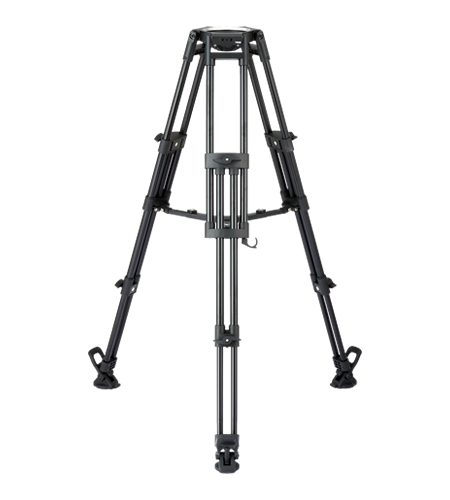

HEAVY DUTY 150mm

2-Stage

Operation manual
T150B / T150C SP-15B
BR-6B FP-6B
Specification sheet
T150B+SP-15B T150B+BR-6B/FP-6B
T150C+SP-15B T150C+BR-6B/FP-6B
SP-15B BR-6B
FP-6B
Service parts
T150B T150C
SP-15B BR-6B
FP-6B
Specifications
  T150B T150C
Pipe material Aluminum Carbon
Payload 100kg / 220.4lb 100kg / 220.4lb
Weight 6.6kg / 14.5lb *1 5.6kg / 12.3lb *1
Height 58.5 to 163cm
23 to 64" *2
58.5 to 163cm
23 to 64" *2
Head attachment 150mm bowl 150mm bowl
Section 2-Stage 2-Stage
*1 The weight is excluding spreaders and rubber feet.
*2 Measured with a floor spreader attached. The height will be different if a mid-level spreader and large rubber feet are attached.
*Spreaders are sold separately
