Head
Payload 4kg / 8.8lb

Operation manual
NH10
Specification sheet
NH10
Service parts
NH10
Specifications
Counterbalance Range 0 to 2.5kg / 0 to 5.5lb(C.G.55mm)
Payload 4kg / 8.8lb
Counterbalance Free plus 5STEP
Drag mode Free plus 3STEP
Drag system Multilayered Metal Structure
Tilt angle +90° / -70°
Temperature range -40°C to +60°C / -40°F to +140°F

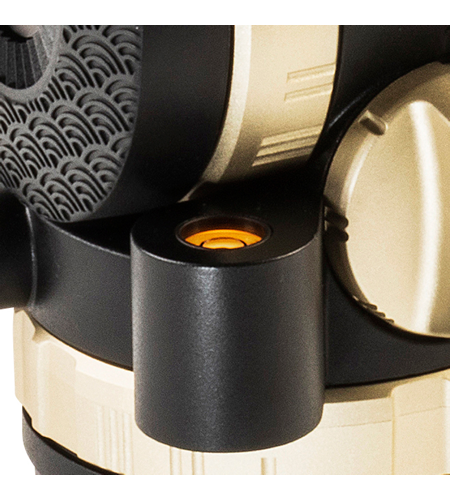

Bubble level Illuminated
Camera plate Sliding plate compatible
Compatible with Manfrotto and Sachtler heads
Sliding range +/-30mm / 1.2"
Long sliding plate Optional

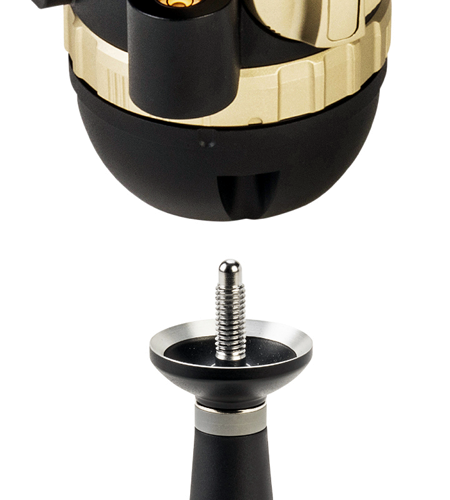

Head base 75mm ball / Flat base
Plate attachment 1/4" screw with video pin

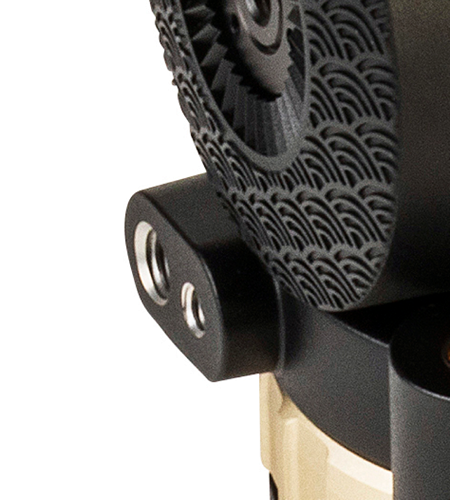

Accessory attachment 1/4" and 3/8" screws holes
Spare screw 1/4" and 3/8" screws
Weight 1.8kg / 4lb
NH10 Counterbalance chart
