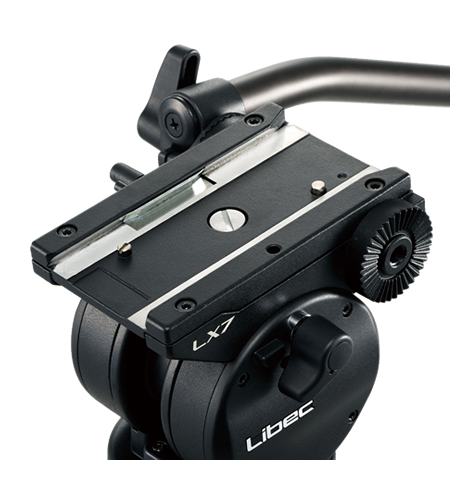

3/8" screw (Same as LX7 head)
Related Items
RC-50
Leg lock knob
3/8" screw (Same as LX7 head)
| System components | |
|---|---|

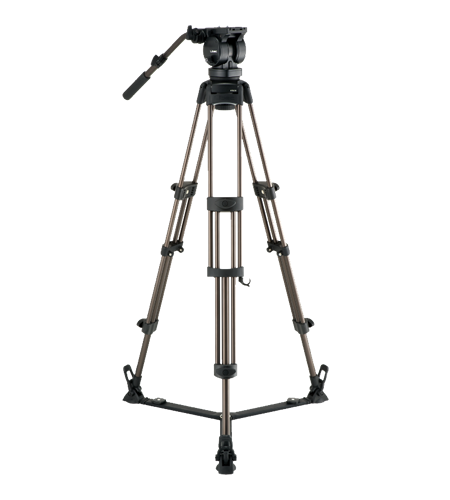

| Head: LX10 Head | Tripod: RT50B |
| Spreader: SP-2B | Case: RC-50 |
| Operation manual | |
|---|---|
| LX10 Head | RT50B |
| SP-2B | |
| Specification sheet | |
| LX10 | LX10 Head |
| RT50B | SP-2B |
| RC-50 | |
| Service parts | |
| LX10 Head | RT50B |
| SP-2B | |
| Specifications | |
|---|---|
| Payload | Payload 16kg / 35lb |
| Counterbalance | FIX |
| Drag mode | 2STEP |
| Tilt angle | +85° / -65° |
| Temperature range | -20°C to +60°C / -4°F to +140°F |
| Bubble level | Non illuminated |
| Camera plate | Sliding plate |
| Sliding range | +/-50mm / 2" |
| Head base | 100mm ball |
| Plate attachment | 3/8" screw × 2 |
| Spare screw | 3/8" screw |
| Weight | 7.6kg / 16.7lb |
| Height | 63 to 173.5cm / 25 to 68.5" |
| Head attachment | 100mm bowl |
| Section | 2-Stage |

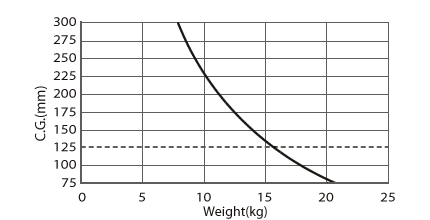

| LX10 Counterbalance chart |
|---|
 |
